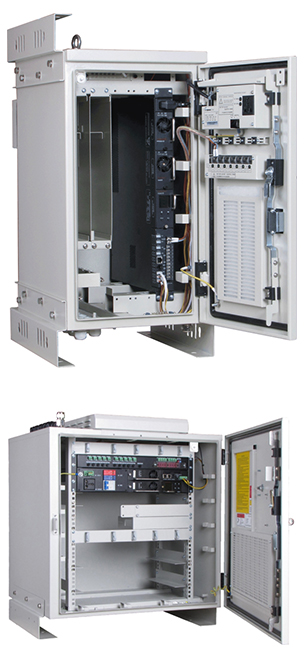

IP 55/52 Cabinets
IP 55 / 52 complied outdoor cabinets for Telecom applications suitable for 4G and 5G network expansion – Suitable glands for power cables and holding facilities for Optical Fiber Cables. Compact design suitable for wall and floor mounting. AC or DC fans to push the hot air outside from the cabinet.
- Powder Coating – RAL 7032 and 7035
- Finishing – Structure, Texture and MAT
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Wall and Floor Mounting provisions
- 3, 4 and 7 Tank process
- CPRI Lab test will be performed as per the request
- Louvers with filter for IP
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.

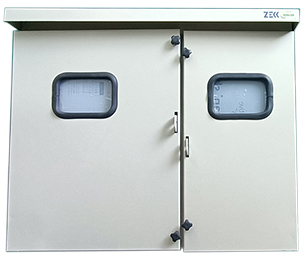

Meter Box Cabinets
Outdoor meter box solution to install multiple energy meters and can be accessed individually via pad lock, High grade polycarbonate sheet to view the meter readings clearly.
- Powder Coating – RAL 7032 and 7035
- Finishing – Structure, Texture and MAT
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Wall Mounting provisions
- 3, 4 and 7 Tank process
- IP Rating – IP 52
- Louvers protected with mesh for natural cooling
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.

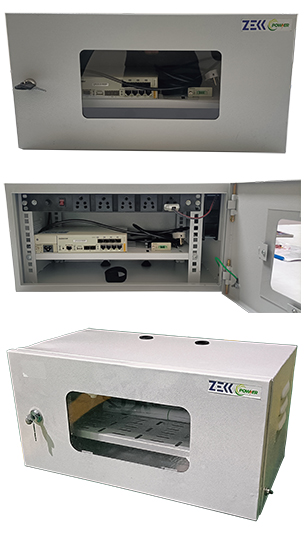

Wall Mount Racks
Wall mount racks for internet equipment and CCTV devices in various U Capacity – 2U, 4U, 6U, 8U, 10U, 12U, 14U etc.
Cabinets are supplied with suitable PDU and Fan as per the customer requirement. IN/OUT grommets or knock out type provisions as per the requirement.
- Powder Coating – RAL 7032 and 7035
- Finishing – Structure, Texture and MAT
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Wall Mounting provisions
- 3, 4 and 7 Tank process
- IP Rating – IP 30
- Louvers protected with mesh for fan cooling
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.

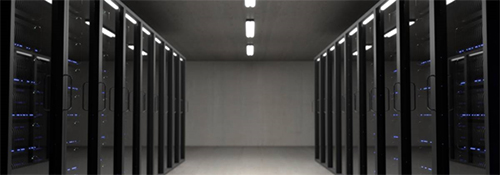

Server Racks
1000 mm deep server rack for the installation of sliding type servers and Hard Disk Arrays. Server racks with customized height and depth to meet customized requirements.
In house fabrication facility to customize and provide competitive products.
Additional PDU and Fan tray can be added as per the requirement.
10 U to 42 U Design suitable for 19 Inch and 21 Inch racks.
- Powder Coating – RAL 7032, 7035 and Black
- Finishing – Structure, Texture and MAT
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Floor Mounting provisions
- 3, 4 and 7 Tank process
- IP Rating – IP 30
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.

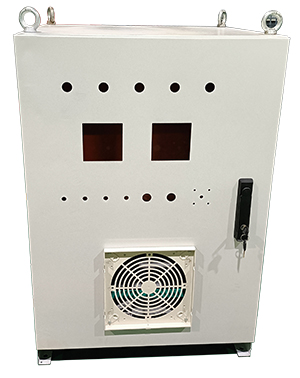

Industrial Battery Charger Cabinets
Our battery charger cabinets are tested and certified by CPRI lab for IP42 compliance.
Cabinets available for both Thyristor based and SMPS based chargers.
Natural and fan cooling solutions to keep the rectifier cool.
Customized transformer and chock holding plates.
- Powder Coating – RAL 7032 and 7035
- Finishing – Structure, Texture and MAT
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Floor Mounting provisions
- 3, 4 and 7 Tank process
- IP Rating – IP 42
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.
EV Charger Cabinets
AC and DC EV charger cabinet manufacturing setup to meet the upcoming requirements of EV charging stations.
Customized design to meet customer requirements.
High power fan cooling provisions with louvers to keep the rectifier cool during operations.
3 Point lock for easy access and meet IP 55.
C Type cabinet design with EPDM gasket to meet IP 55.
- Powder Coating – RAL 7032, 7035, Black and White
- Finishing – Structure, Texture, MAT and Glossy
- Coating Thickness – 70 and above
- MS, GI, CRCA Sheet Fabrication
- Wall and Floor Mounting provisions
- 3, 4 and 7 Tank process
- IP Rating – IP 55
- Louvers protected with mesh for natural cooling
Erection and I&C
In addition to the supply, we are also involved in complete I&C of the product which we supply.
